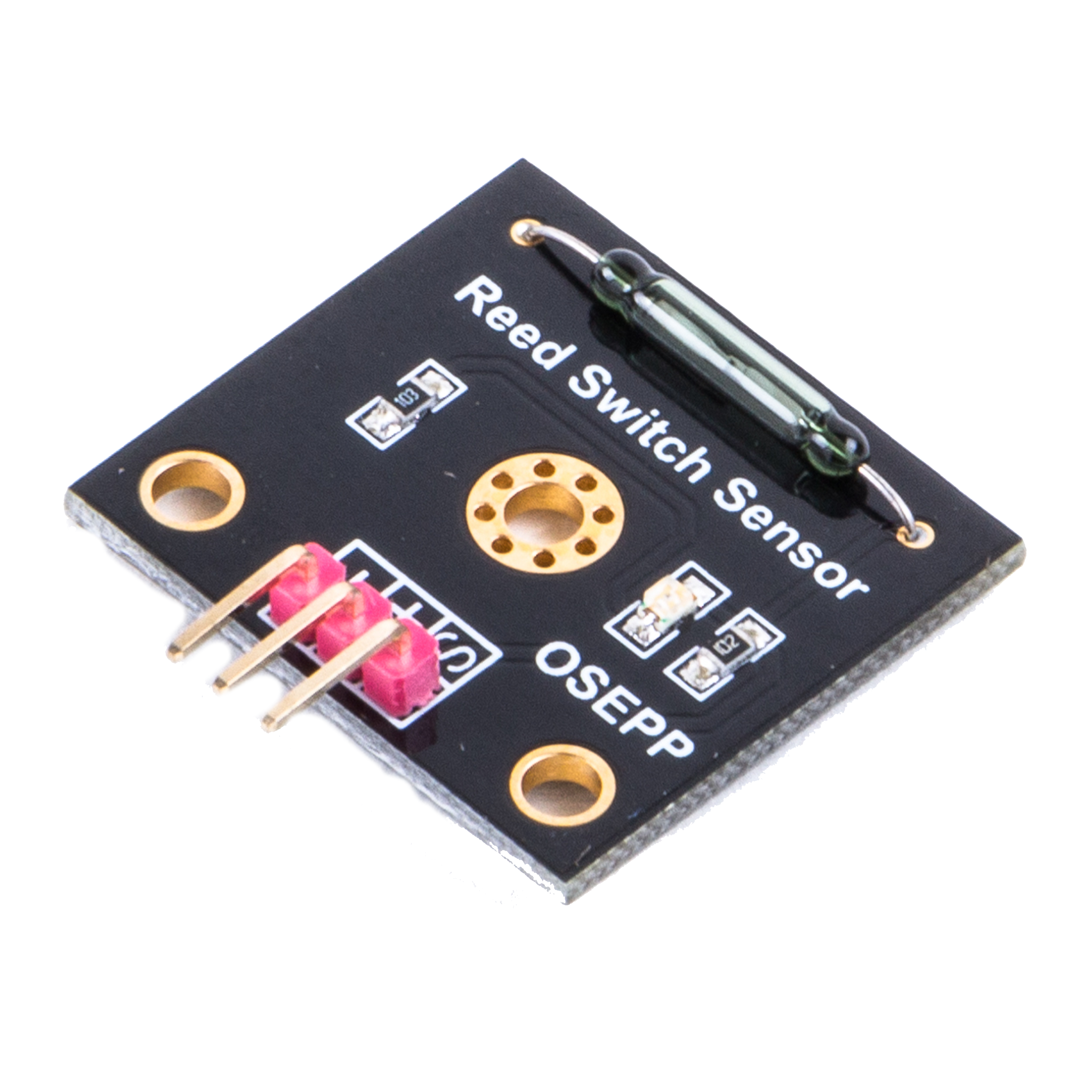

This reed switch module acts as a SPST (single pole, single throw) switch. The reed switch state is triggered high or low based on the proximity of a magnet.
- 100% Arduino compatible.
- Rated 5V (typical), 500mA (10W).
- Digital input device.
| Specifications | |
| Catalog No. | 2751602 |
| Mfg. Part No. | REED-01 |
| Operating Voltage | 4.5 to 5.25V (5V Typical) |
| UPC | 667510001332 |
Technical Schematic (PDF)
Source Code (ZIP)
