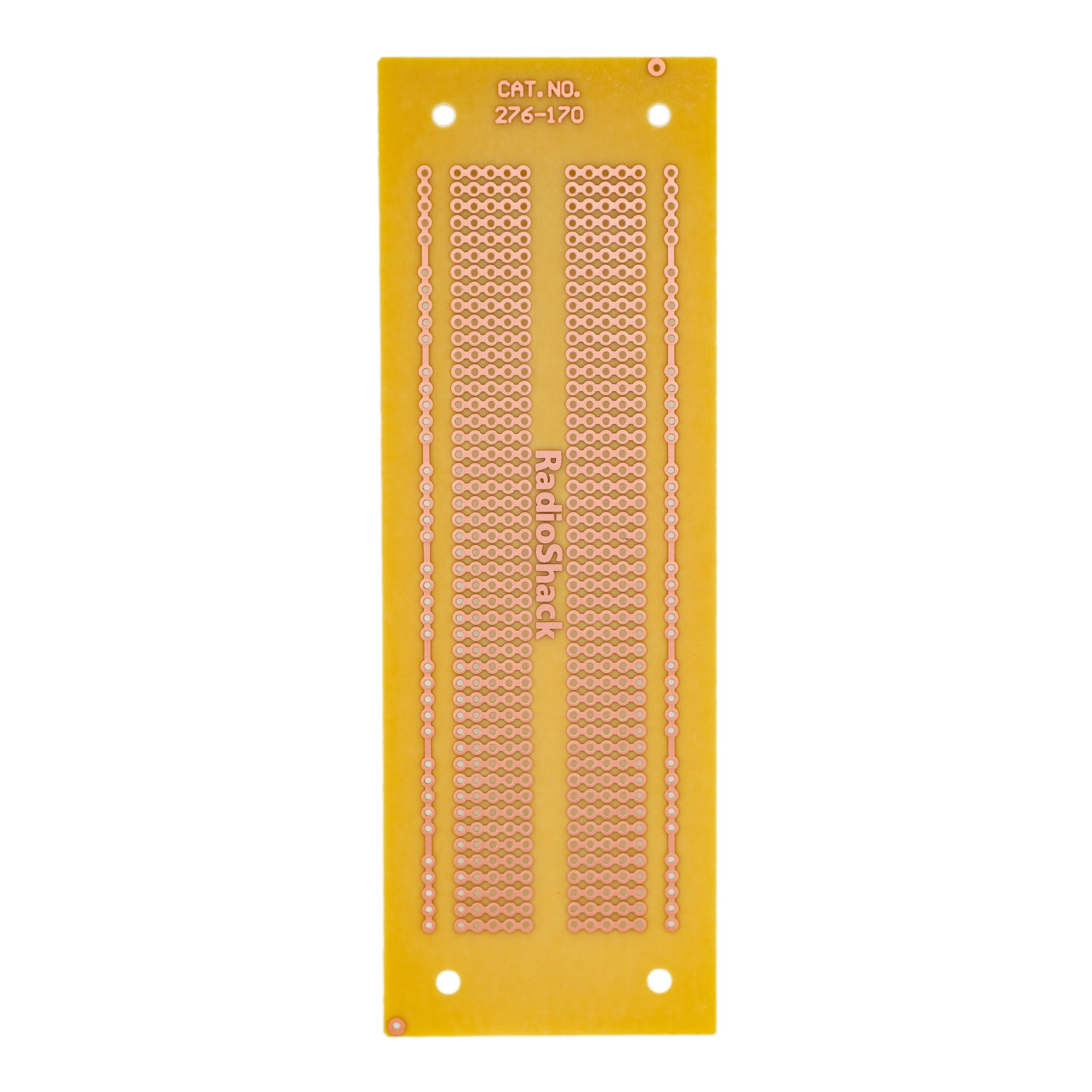

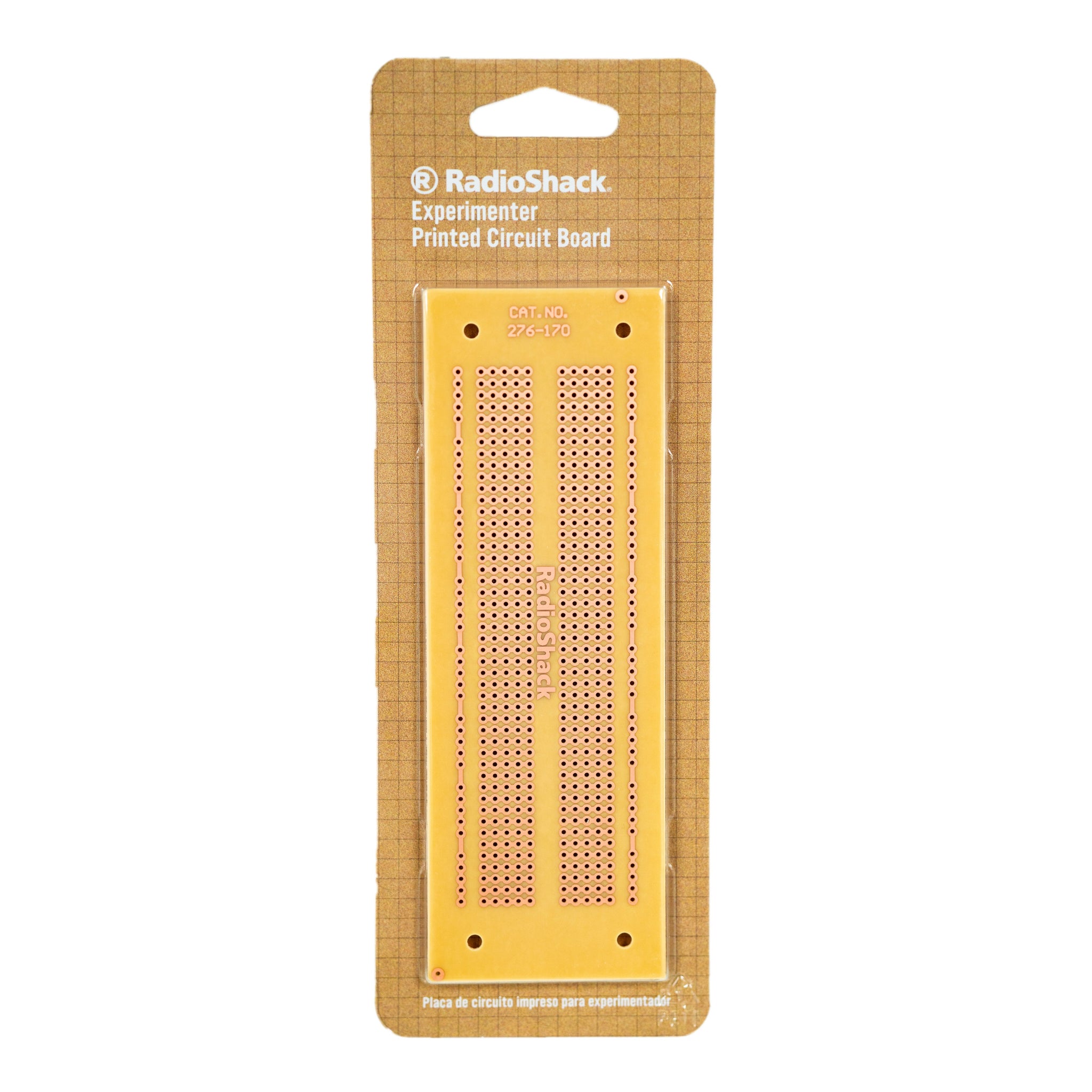

Use this matching printed circuit board as the starting point for your electronics project.
- Includes 550+2(one on each side) pre-drilled indexed connect points.
- Layout matches modular breadboards for easy circuit transfer.

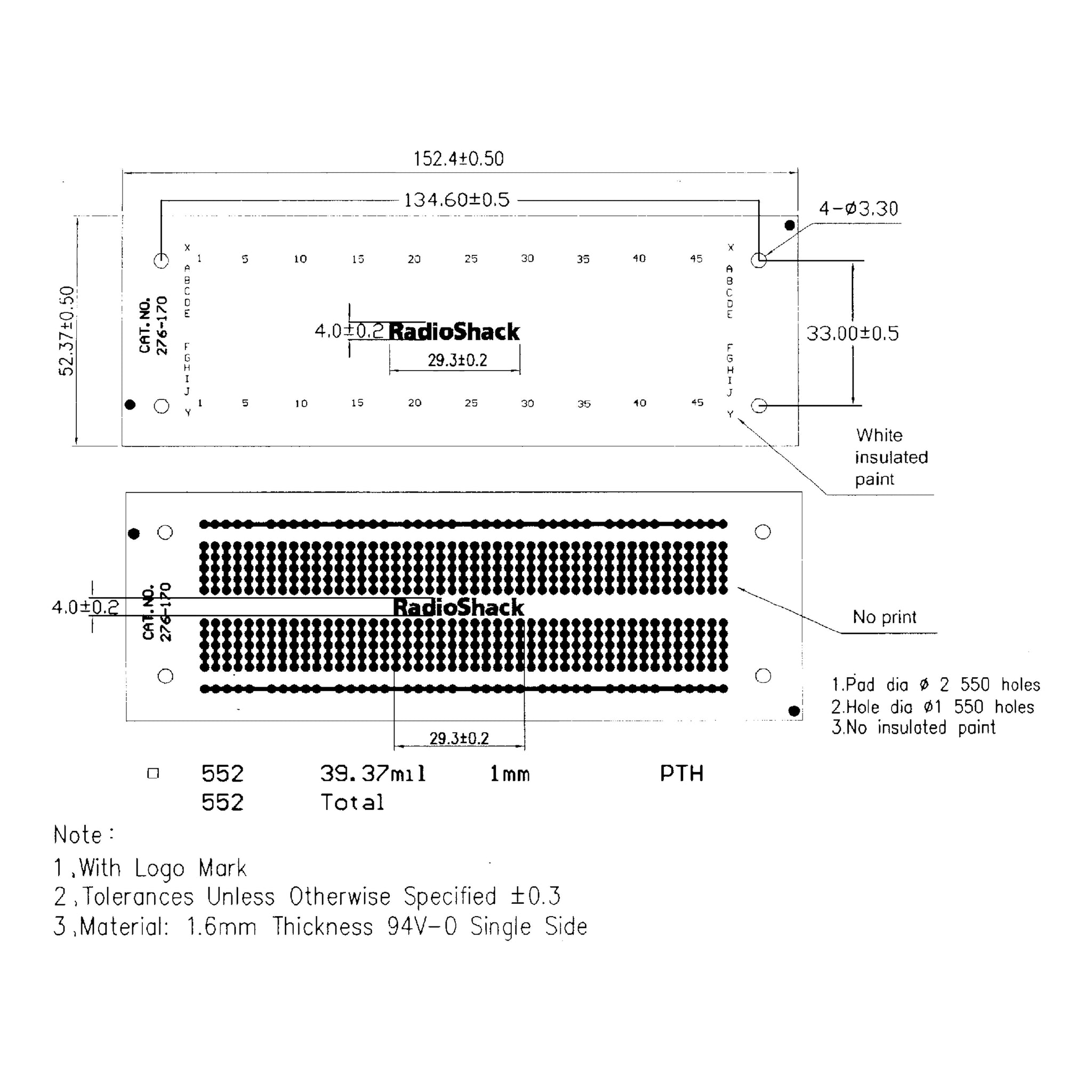

- Dimensions are 152.4mm ±0.5 x 52.37mm ±0.5.
| Part Number | 2760170 |
| Dimensions | 152.4mm ±0.5 x 52.37mm ±0.5 |
| Mounting Point Dimensions | 134.6mm ±0.5 x 33mm ±0.5 |
| Soldering Points | 552 |
| Recommended Wire Gauge | 22AWG |
| Perforated Array | 47x12 |
| UPC | 040293132811 |
Parts Warranty: 90 Days
