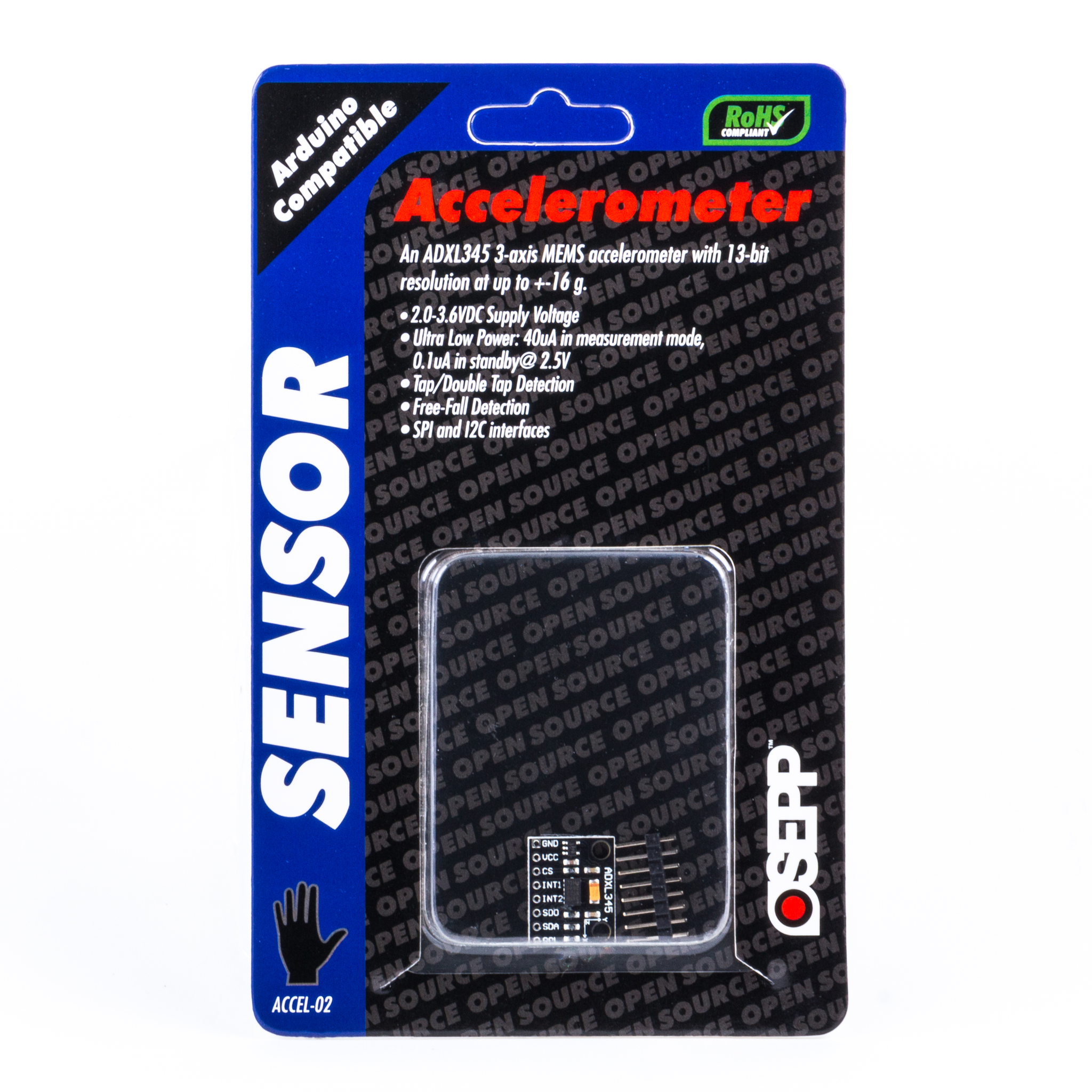

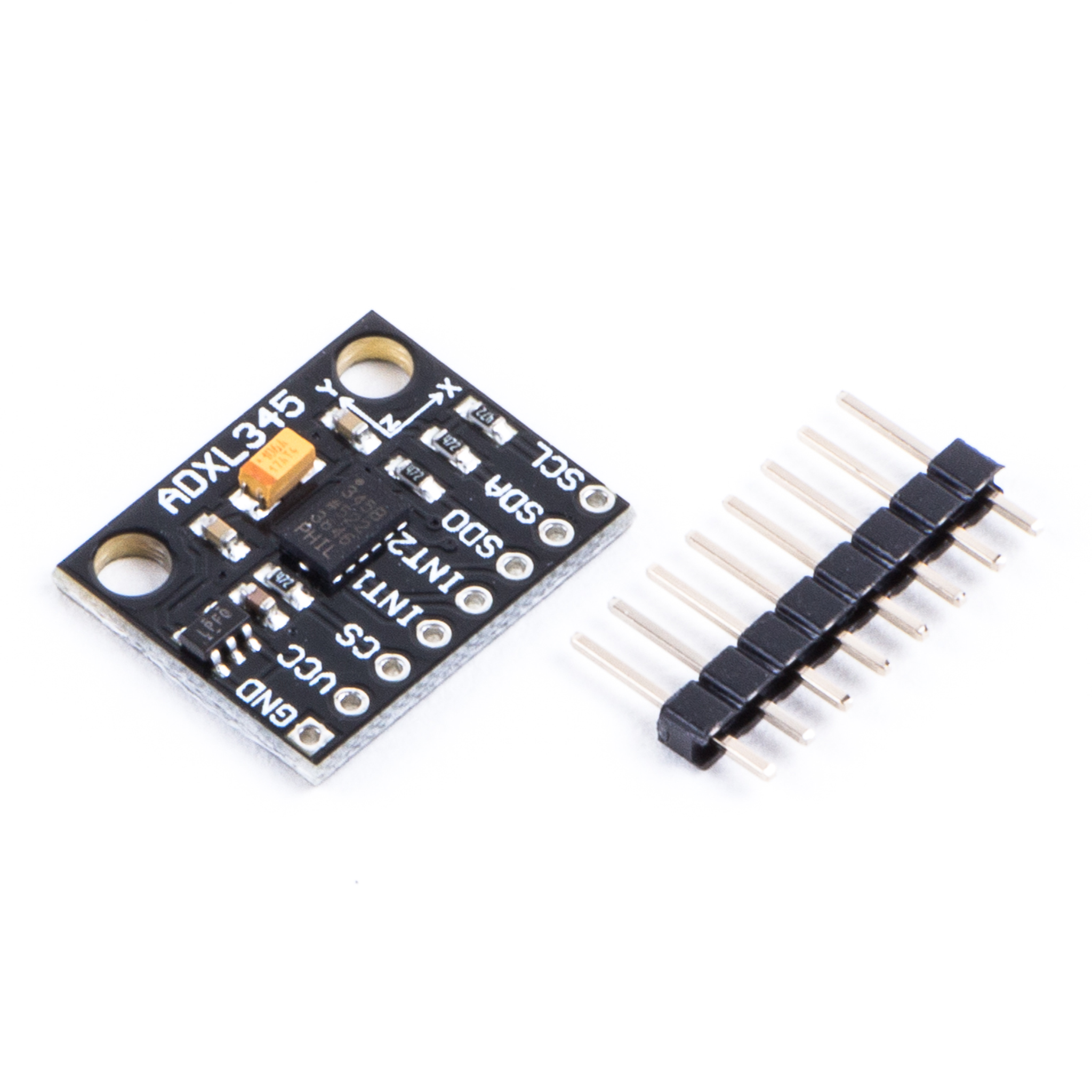

The OSEPP ADXL345 is a 3-axis MEMS accelerometer with 13-bit resolution measurement at up to +/-16g. Digital output data is formatted as 16-bit two's complement and is accessible through either an SPI (3 or 4-wire) or I²C digital interface.
- 100% Arduino compatible.
- 2 to 3.6V supply.
- SPI and I²C digital interfaces.
| Specifications | |
| Catalog No. | 2760440 |
| Mfg. Part No. | ACCEL-02 |
| UPC | 667510001424 |
Technical Schematic (PDF)
Source Code (ZIP)
⚠️ WARNING: CHOKING HAZARD: Small parts. Not for children under 3 yrs.
